CNPIPC / CEIEC H-200 KS-1A / HQ-12 Phased Array / Triumphant Mountain


CNPIPC / CEIEC H-200 KS-1A / HQ-12 Phased Array / Triumphant Mountain

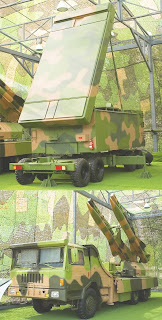

H-200 engagement radar and KS-1A TEL. The H-200 is semi-mobile, but with further evolution could qualify as mobile.

In 2000 the KS-1A was promoted as a new air defence missile, supplanting the earlier SA-2 copy known as the KS-1 (Kaishan-1, refer SJ-202).

A ‘medium-to-high altitude, long-range SAM guidance station’ is how this radar is presented and it is believed to be a Chinese reverse engineered copy of the American AN/MPQ-53 Patriot radar. This being the case, the H-200 can be expected to function in G-bands, offering integrated electronic sector surveillance, target detection (TD), target tracking (TT), Identification Friend & Foe (IFF), and missile guidance (MG) functionality.

The antenna face comprises surveillance, IFF, target illumination and data transmission elements, and will offer phase steered target detection over an approximate 90º sector and tracking over a somewhat wider sector, but less than 160º. Reported capability is as follows:

Target detection & tracking ranges:
Max detection range: ≥120km @8km altitude ≥50km @ 0.1km alt
Max stable tracking: ≥90km @8km alt ≥45km @ 0.1km alt
Target characteristics: RCS: 2m2
Max target velocity: 750m/s (2.18 Mach)
Manoeuvre overload: 5.5g
Tracking capacity: Accurate tracking 3 targets; Monitoring 3 targets; Guidance 6 missiles; Guidance error: ≤50m

Set-up time ≤30 mins Tear-down time ≤20 mins qualifying the radar as semi-mobile.

Note 1: The KS-1 missile is usually associated with the SJ-202, whereas the KS-1A is being associated with the H-200 / KS-1A phased array.
Note 2: Antenna is very similar to that of BL904. A deployed example of a H-200 / KS-1A phased array radar can be seen at 43º 56’ 57.18” North, 87º 40’ 25.49” East, surrounded by six probable KS-1A missile launchers.
